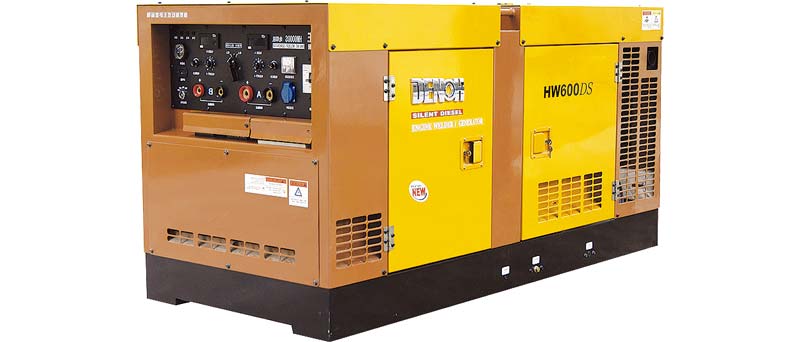

HW600DS 柴油600A发电电焊一体机 | 600A Diesel generator welder

600A柴油双把静音发电电焊一体机 | 600A Diesel generator welder

HW600DS-EW柴油600A静音发电电焊一体机
  •   产品优势 | Product Advantage
  • * 具有双把同时焊接互不干扰的功能。
  • * 20KW辅助电源,同时为多种工具提供电源输出。
  • * 转子采用整块具有良好导磁性能、高牌号、温升小、效率高的硅钢片切割后叠压而成。
  • * 超大油箱79L,让燃油储备充足使用不停机。
  •
  • * On the basis of the original design has greatly increased the welding performance
  • * 20 kw auxiliary power field electric tools.
  • * The rotor adopts the whole has the good permeability of high strength alloy steel forging
  • * Big tank of 79 L, sufficient fuel reserves.
HW600DS-EW性能参数配置/Specification of HW600DS-EW
类型/Type
无刷/Brushless
驱动方式/Driven
直接耦合/Direct coupling
防护等级/Protection class
IP23
绝缘等级/Insulation class
F
焊接输出/Descending Output
额定功率/Rated power
18.3 KW
额定电流/Rated current
580 DCA
额定电压/Rated voltage
31.6 DCV
空载电压/Idle voltage
80 DCV
暂载率/Rated duty cycle
60%
焊接电流调节范围/Current range control
(60-300)×2 DCA
辅助电输出/Accessorial Receptacle
额定功率/Rated power
20.0 KW
额定电压/Rated voltage
380 DCV
发动机/Engine
型号/Model
三菱/Mitsubishi S4S
类型/Type
四冲程四缸/4-stroke, 4-cylinder
排气量/Displacement
3331 CC
额定功率/Rated output power
38 HP
额定转速/Rated speed
1500 rpm
启动方式/Starting system
电启动/Electric
燃料/Fuel
柴油/Diesel
冷却方式/Cooling system
水冷/Water-cooled
其它/Others
油箱容量/Fuel tank capacity
79 L
外形尺寸/Dimension (L×W×H)
2000×900×1000 mm
重量/Net weight
900 Kg
