HW800DS-EW 400A×2柴油静音发电电焊机 | 400A×2 Diesel generator welder

HW800DS-EW 400A×2柴油静音发电电焊机 | 400A×2 Diesel generator welder

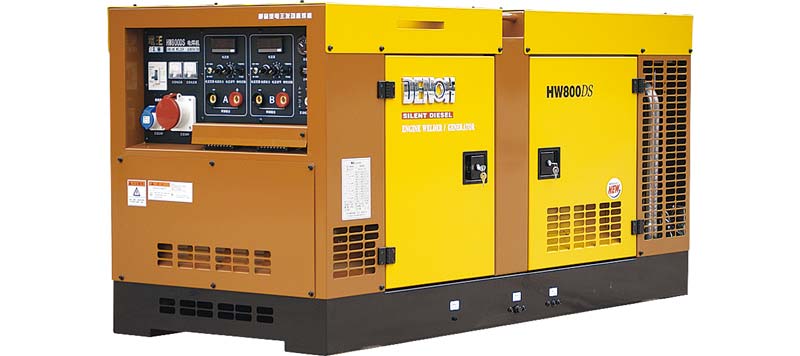

HW800DS-EW柴油静音发电电焊机
  •   产品优势 | Product Advantage
  • * HW800DS-EW双把手工电弧焊可满足普通焊条、纤维素焊条等多种焊条的使用,并可实现双把简易氩弧焊接功能。
  • * 实现双把半自动药芯自保护焊接功能。
  • * HW800DS搭载道依茨柴油发动机,采用诱导子无刷焊接发电一体技术及其控制系统.
  • * 超静音设计,出色的焊接性能,操作简单、故障率低、耐用性强,工作效率高
  •
  • * Satisfy the use of a variety of electrode 2people at the same time welding, semiautomatic welding cored pipe welding,argon arc welding.
  • * 30 kw auxiliary power field electric tools.
  • * Way in accordance with the diesel engine and control system.
  • * In field welding operations,show superior ability Electricity current stability is strong, main equipment of pipe welding.
HW800DS-EW性能参数配置/Specification of HW800DS-EW
类型/Type
无刷/Brushless
驱动方式/Driven
直接耦合/Direct coupling
防护等级/Protection class
IP23
绝缘等级/Insulation class
F
下降特性输出/Descending Output
额定功率/Rated power
13.4×2 KW
额定电流/Rated current
380×2 DCA
额定电压/Rated voltage
35.2 DCV
空载电压/Idle voltage
85 DCV
暂载率/Rated duty cycle
60%
平特性输出/Welder Output
额定焊接电压/Open-circuit Voltage
22~43 CV
暂载率/Rated Duty Cycle 80 %
额定电流/Rated Current
350×2 DCA
辅助电输出/Aux. power
额定功率/Rated Power
30 KW
额定电压/Rated Voltage
380 ACV
发动机/Engine
型号Model
道依茨/DEUTZ TD226B
类型/Type
四冲程三缸/4-stroke,3-cylinder
排气量/Displacement
3120 CC
额定功率/Rated Output
45 KW
转速/Rated Speed
1500 rpm
冷却方式/Cooling System
水冷/Water-cooled
燃料/Fuel
柴油/Diesel
启动方式/Starting System
电启动/Electric
其它/Others
油箱/Fuel Tank Capacity
79 L
外形尺寸/Dimensions
2000×900×1000 mm
重量/Dry Weight
1200 Kg
