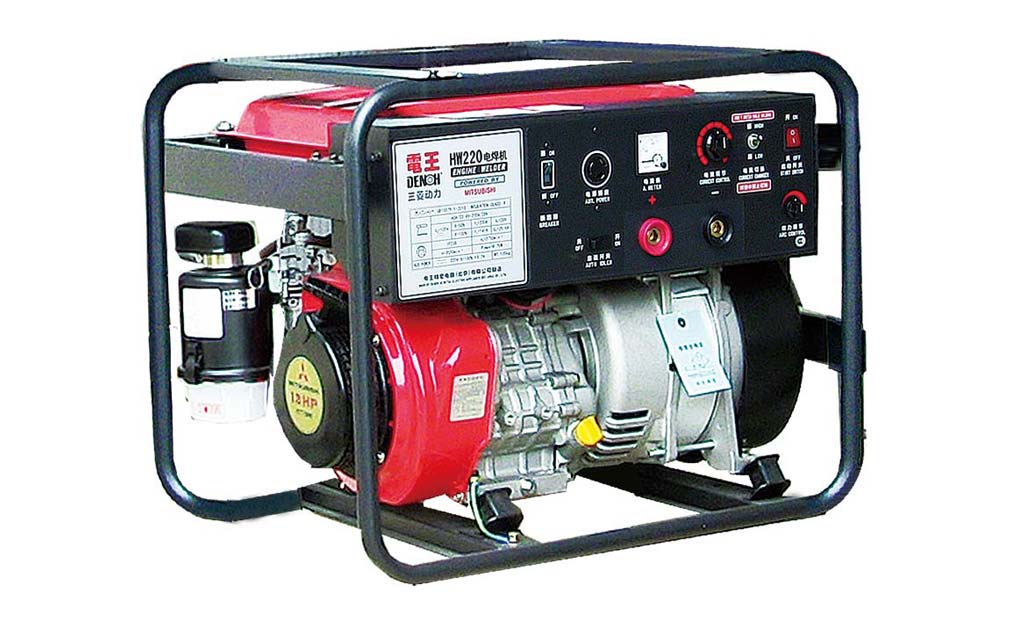

HW220 200A汽油发电焊机 | 200A Gasoline generator welder

HW220EW产品优势 |HW220EW Product Advantage
* 适用多种焊条，可以施行纤维素焊条、低氢焊条及氩弧焊的全位置焊接。
* 无刷、诱导子发电技术。
* 具有电弧吹力调节功能，电弧稳定、飞溅小。
* 配有省油电磁阀。
* for a variety of welding rod, can well celluloseelectrode, Low hydrogen electrode and argon arc welding of all position welding.
* brushless, elicitor power generation technology,high power generation efficiency.
* with arc blow force regulating function, arc stability, little splash.
* equipped with fuel solenoid valve with high efficiency of welding machine Than any other brand 40% energy saving equipment.

HW220EW性能参数配置/Specification of HW220EW
碳刷/Brush	无/No
驱动方式/Driven	直接耦合/Direct coupling
防护等级/Protection class	IP21
绝缘等级/Insulation class	F
焊接输出/Descending Output
额定功率/Rated power	5.6 KW
额定电流/Rated current	200 DCA
额定电压/Rated voltage	28 DCV
空载电压/Idle voltage	85 DCV
暂载率/Rated duty cycle	50%
焊接电流调节范围/Current range control	（50-230）DCA
辅助电输出/Accessorial Receptacle
额定功率/Rated power	3.0 KW
额定电压/Rated voltage	220 DCV
辅助电额定电流/Rated current	13.7 A
暂载率/Rated duty cycle	100%
发动机/Engine
型号/Model	三菱/MITSUBISHI GT1300
类型/Type	四冲程单缸/4-stroke, 1-cylinder
排气量/Displacement	391 CC
额定功率/Rated output power	13 HP
额定转速/Rated speed	3580 rpm
启动方式/Starting system	手启动/Recoil
燃料/Fuel	无铅汽油/Unleaded gasoline
冷却方式/Cooling system	风冷/Air cooling
其它/Others
油箱容量/Fuel tank capacity	12 L
外形尺寸/Dimension (L×W×H)	707×530×560 mm
重量/Net weight	105 Kg
车轮/Wheel kit	选配/option
