【关于本机】
本设备由 北京安捷伟达科技有限公司 提供，属于我们的 ENGINE WELDER 系列 定制化焊接电源解决方案。本系列产品集成先进的数字无刷诱导子发电技术与IGBT高频斩波控制，在实现变速恒压输出的同时，显著提升燃油经济性。
【核心特性与差异】
-
高能效与省油：智能油门根据负载自动调节转速，省油效果优异。
-
强大输出能力：可同时支持两套自动单枪外焊设备及一套45kW中频加热系统，满足复杂工况。
-
稳定焊接性能：采用DFJ低飞溅波形控制技术，焊接熔池稳定，成型美观。
-
轻量化设计：逆变频率高达35kHz，整机结构紧凑、重量轻，便于野外移动作业。
【定制与服务】
此产品为根据需求定制的非标准设备。具体配置（如发动机品牌、辅助电源、静音机箱等）及最终报价，请致电 86-010-86468776 或联系我们的技术销售团队，我们将为您提供专属配置方案。
【应用场景】
广泛应用于对设备机动性和持续作业能力要求高的领域，如桥梁建设、长输管道施工、市政抢险救灾，也可集成于全自动焊接机器人系统。
【About This Product】
This equipment is provided by Beijing Engine Welder Technology Co., Ltd. and belongs to our ENGINE WELDER Series of customized welding power solutions. This series integrates advanced digital brushless inducer power generation technology with IGBT high-frequency chopping control, achieving variable speed constant voltage output while significantly improving fuel economy.
【Core Features & Differentiators】
-
High Efficiency & Fuel Saving: The smart throttle automatically adjusts engine speed based on load conditions, delivering excellent fuel savings.
-
Powerful Output Capacity: Simultaneously supports two sets of automatic single-gun external welding systems and one 45kW medium-frequency induction heating system, meeting complex operational demands.
-
Stable Welding Performance: Adopts DFJ (Low Spatter) waveform control technology for a stable welding pool and excellent bead appearance.
-
Lightweight Design: With an inverter frequency up to 35kHz, the machine features a compact structure and light weight, making it ideal for field operations.
【Customization & Service】
This is a non-standard customized product. For specific configurations (e.g., engine brand, auxiliary power, silent canopy, etc.) and final quotations, please call 86-010-86468776 or contact our technical sales team for a tailored solution.
【Application Scenarios】
Widely used in fields demanding high mobility and continuous operation capability, such as bridge construction, long-distance pipeline welding, municipal engineering, and disaster relief, and can also be integrated into fully automatic welding robot systems.

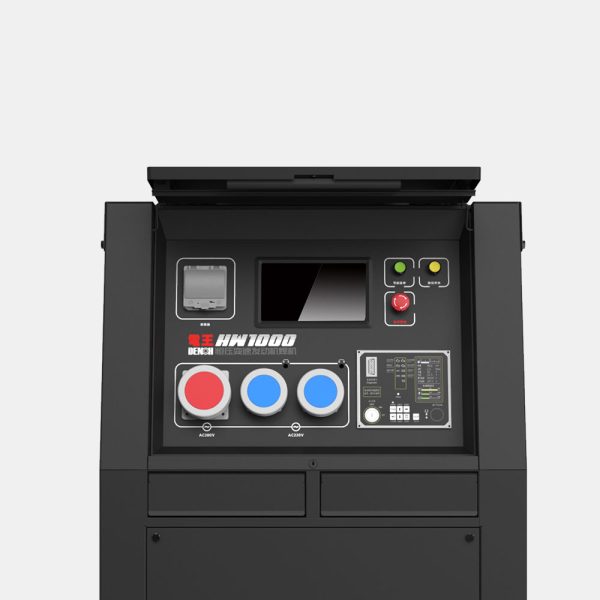

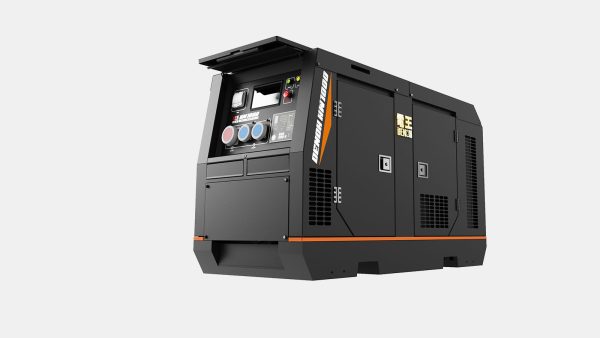

HW1000 数字无刷变速发动机焊机 — 参数配置说明
HW1000 Digital Brushless Variable-Speed Engine Welder — Parameter Configuration
一、基础属性 / Basic Specifications
| 项目 / Item | 参数 / Parameter |
| 型号 / Model | HW1000 |
| 形式 / Type | 数字无刷变速 / Digital Brushless Variable-Speed |
| 绝缘等级 / Insulation Class | H |
| 防护等级 / Protection Grade | IP23 |
二、电焊机参数 / Welder Parameters
2.1 下降特性（CC）/ Constant Current (CC) Characteristics
| 项目/Item | 参数/Parameter |
| 额定功率 / Rated Power | 20 × 2 kW |
| 额定电流 / Rated Current | 500 × 2 A |
| 额定电压 / Rated Voltage | 40 V |
| 空载电压 / No-Load Voltage | 85 V |
| 额定使用率 / Rated Duty Cycle | 60% |
| 电流调节范围 / Current Adjustment Range | (45–500) × 2 A |
| 适用焊条 / Applicable Electrodes | φ2.6–6.0 mm |
2.2 平特性（CV）/ Constant Voltage (CV) Characteristics
| 项目/Item | 参数/Parameter |
| 空载电压 / No-Load Voltage | 85 V |
| 额定功率 / Rated Power | 16.4 × 2 kW |
| 额定电流 / Rated Current | 450 × 2 A |
| 电压调节范围 / Voltage Adjustment Range | 15–36.5 V |
| 额定使用率 / Rated Duty Cycle | 80% |
三、发电机参数 / Generator Parameters
| 项目/Item | 参数/Parameter |
| 额定输出 / Rated Output | 20 kVA |
| 额定电压 / Rated Voltage | 380 V（AC） |
| 额定电流 / Rated Current | 30 A |
| 接线方式 / Connection Method | 三相四线 / Three-Phase Four-Wire |
| 频率 / Frequency | 50 Hz |
| 励磁方式 / Excitation Method | 无刷变频激励 / Brushless Variable-Frequency Excitation |
| 控制方式 / Control Mode | 恒压逆变控制 / Constant Voltage Inverter Control |
| 驱动方式 / Drive Method | 直接耦合驱动 / Direct Coupling Drive |
四、发动机参数 / Engine Parameters
| 项目/Item | 参数/Parameter |
| 排放标准 / Emission Standard | 非道路三阶段排放 / Non-Road Stage III Emission |
| 类型 / Type | 4 冲程 4 缸 / 4-Stroke, 4-Cylinder |
| 排气量 / Displacement | 3.0–4.1 L |
| 额定输出功率 / Rated Output Power | 35–103 kW |
| 额定转速 / Rated Speed | 900–1800 rpm |
| 启动方式 / Starting Method | 24 V 电启动 / 24 V Electric Start |
| 燃料 / Fuel | 轻柴油 / Light Diesel |
| 油箱容量 / Fuel Tank Capacity | 90 L |
五、其他参数 / Other Parameters
| 项目/Item | 参数/Parameter |
| 电池 / Battery | 12 V–80 Ah × 2 |
| 外形尺寸（长 × 宽 × 高）/ Dimensions (L × W × H) | 2070 × 900 × 1234 mm |
| 净重 / Net Weight | 1500 kg |
| 噪音 / Noise Level | 71 dB（7 m 处 / at 7 m） |
六、产品特性 / Product Features
- 全数字控制 / Fully Digital Control
可提供恒压 / 恒流输出，支持药芯气保焊、药芯自保焊、MIG/MAG 焊、脉冲 MIG/MAG 焊；采用数字控制 + IGBT 斩波技术，电弧响应快。
Provides constant voltage/constant current output, supporting flux-cored gas-shielded welding, flux-cored self-shielded welding, MIG/MAG welding, and pulsed MIG/MAG welding. Utilizes digital control + IGBT chopper technology for fast arc response. - 无刷变速发电 / Brushless Variable-Speed Power Generation
作业持续性强、发电效率高；搭载专利 CN208046464U 恒压逆变技术，输出纯正弦波工频交流电，输出稳定性不受发动机转速影响。
Offers strong operational continuity and high power generation efficiency; equipped with patented CN208046464U constant voltage inverter technology, delivering pure sine wave industrial-frequency AC power, with output stability unaffected by engine speed. - 智能油门设计 / Intelligent Throttle Design
转速 900–1800 rpm 可调；搭载专利 CN105515325B 技术，可根据负载自动调节转速，有效降低油耗。
Speed adjustable from 900 to 1800 rpm; featuring patented CN105515325B technology that automatically adjusts speed based on load, effectively reducing fuel consumption. - 发电机三路独立输出 / Three Independent Generator Outputs
分别供给 U / V / W 逆变系统，省去变压器，提升系统效率、降低重量与成本。
Supplies the U/V/W inverter systems independently, eliminating the need for a transformer, improving system efficiency, and reducing weight and cost.
